Ford Mustang Service Manual: Identification Tags

Transmission Description (Description and Operation)

The 4R70W has the following features:

  • Wide ratio gears
  • Four speeds
  • Rear wheel drive
  • Automatic
  • Electronic shift
  • Torque converter clutch control
  • Line pressure controls

The transmission uses Ravigneaux-style double-pinion gearset with two bands, one one-way roller clutch, one mechanical diode and four friction clutches to produce four forward gears and Reverse.

4R70W Automatic Transmission

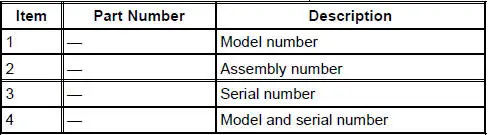

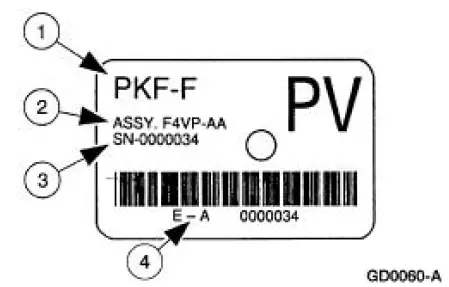

Identification Tags


    Transmission Description (Description and Operation)
    Transmission Description (Description and Operation) The 4R70W has the following features: Wide ratio gears Four speeds Rear wheel drive Automatic Electronic shift Torque conver ...

    Range Selection
    Transmission Description (Description and Operation) The 4R70W has the following features: Wide ratio gears Four speeds Rear wheel drive Automatic Electronic shift Torque conver ...
