Ford Mustang Service Manual: Shield

Front Disc Brake (

Description and Operation)

Front Disc Brake Components






Disc Brake Caliper Components


Disc Brake Caliper Components






The front disc brake caliper (2B120):


The front disc brake caliper (2B120):

  • bolts to the front disc brake caliper anchor plate (2B292), which bolts to the front wheel spindle (3105).
  • is a pin slider, dual piston design.

The front brake discs (1125):

  • are of a ventilated full-cast design, with non-directional cooling fins.
  • are serviced with the disc brake caliper and front disc brake caliper anchor plate removed.

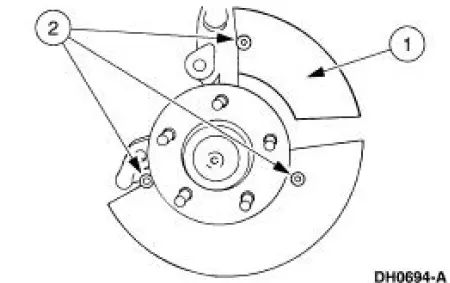

The front brake disc shield (2K005):

  • is riveted to the front wheel spindle.
  • protects the front wheel bearings and inboard surface of the front brake disc.

The pads:

  • are housed in the front disc brake caliper anchor plate.
  • are of a non-asbestos, non-metallic composition.
