Ford Mustang Service Manual: Fuel Charging and Controls - Mach I 4.6L (4V)
General Specifications

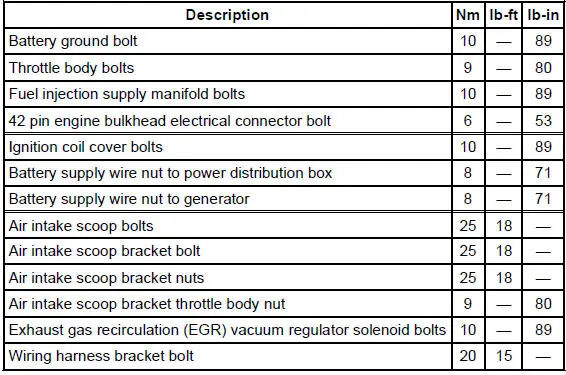

Torque Specifications
Fuel Injection Supply Manifold and Fuel Injector
Fuel Charging and Controls
The fuel injection supply manifold:
receives fuel from the fuel supply line.
delivers fuel to the fuel injector.
The throttle body:
controls air supply to the intake m ...
Fuel Charging and Controls
Fuel Charging and Controls
The fuel injection supply manifold (9F792):
delivers fuel to the fuel injector.
receives fuel from the fuel supply line.
The throttle body:
controls air supply to the ...
