Ford Mustang Service Manual: Parking Brake (Description and Operation)
Parking Brake (Description and Operation)
.gif)
.jpg)

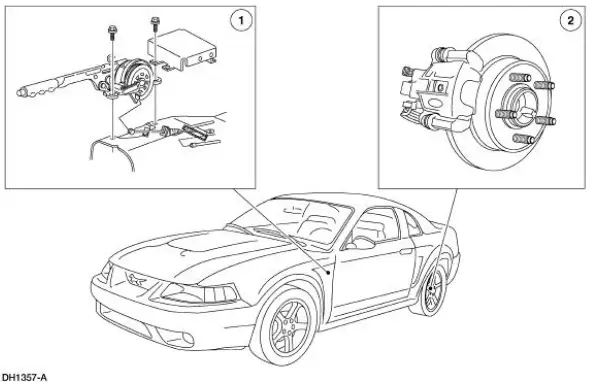

The parking brake system is cable-actuated and controlled by an independent hand-operated parking brake control (2780). To apply parking brake, pull parking brake control upward as far as possible.
The parking brake system is an AUTO-ADJUST system. The spring in the parking brake control continuously adjusts the cable tension in the system.
Brake Warning System
A parking brake warning indicator:
- is located in the instrument panel.
- illuminates to signal the driver the parking brake is applied or to signal a low fluid condition.
- remains lit when a brake malfunction has occurred.
Parking Brake and Actuation
Torque Specifications
...
Parking Brake (Diagnosis and Testing)
Parking Brake (Description and Operation)
The parking brake system is cable-actuated and controlled by an independent
hand-operated parking
brake control (2780). To apply parking brake, pul ...
