Ford Mustang Service Manual: Rear Drive Axle/Differential - Ford 8.8-Inch IRS
General Specifications

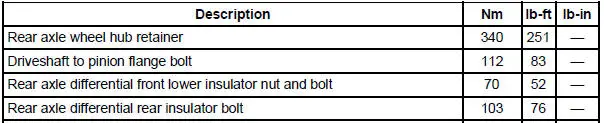

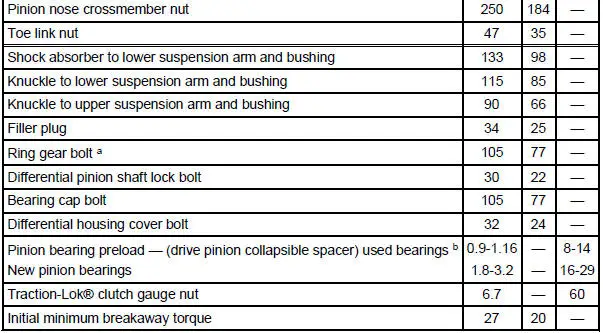

Torque Specifications
a: Use Stud and Bearing Mount EOAZ-19554-BA or equivalent meeting Ford specification WSKM2G349- A1.
b: With pinion flange yoke seal.
- Rear Drive Axle and Differential
- Stub Shaft Pilot Bearing and Seal
- Drive Pinion Flange
- Pinion Seal
- Axle Housing
- Axle
Assembly
Disassembly
1. Remove the differential assembly from the differential housing. For
additional information, refer
to Differential Case in this section.
2. Remove the 10 bolts.
3. CAUTION: Do not da ...
Rear Drive Axle and Differential
Rear Drive Axle and Differential
The differential housing (4010) consists of a cast aluminum housing and
a cast aluminum
differential housing cover (4033). The differential housing c ...
