Ford Mustang (1999-2004) Service Manual: Accessory Drive Belt - 3.8L

Removal and Installation

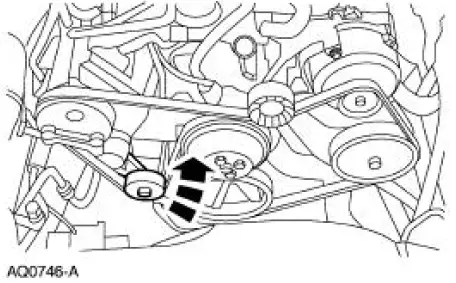

1. Rotate the drive belt tensioner counterclockwise and remove the drive belt.

Accessory Drive Belt - 3.8L

2. NOTE: Make sure the drive belt is correctly installed on each pulley.

To install, reverse the removal procedure.

  • Refer to Accessory Drive for drive belt routing.
    Component Tests
    Drive Belt Noise/Flutter Drive belt chirp occurs due to pulley misalignment or excessive pulley runout. It can be the result of a damaged pulley or an incorrectly aligned pulley. To correct, determi ...
