Ford Mustang (2005-2014) Owners Manual: Safety belt warning light and indicator chime

This lamp illuminates and an audible warning will sound if the driver’s safety belt has not been fastened when the vehicle’s ignition is turned on.

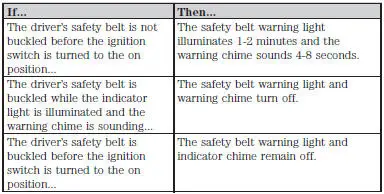

Conditions of Operation

    Fastening the safety belts
    The front outboard and rear safety restraints in your vehicle are combination lap and shoulder belts. The presenter arm (available on the coupe only) is intended to improve access to the safety belt ...

    Safety belt-minder
    This feature supplements the safety belt warning function by providing additional reminders by intermittently sounding a chime and illuminating the safety belt warning light when the driver’s or fro ...
