Ford Mustang (1999-2004) Service Manual: Air Conditioning (A/C) Compressor Bracket - 3.8L
Removal and Installation
1. Remove the A/C compressor (19703). For additional information, refer to Air Conditioning (A/C) Compressor-3.8L in this section.

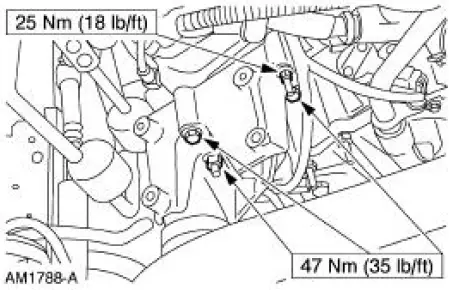

2. Remove the three bolts and one nut.
3. Remove the A/C compressor mounting bracket.
4. To install, reverse the removal procedure.
Air Conditioning (A/C) Compressor - 4.6L
Material
Item
Specification
PAG Refrigerant Compressor
Oil (R-134a Systems)
F7AZ-19589-DA (Motorcraft YN-
12-C)
WSH-M1C231-
B
Removal and Installation
CAUTION: If installing ...
Clutch And Clutch Field Coil
Special Tool(s)
2-Jaw Puller
205-D026 (D80L-1002-L) or
equivalent
Installer, A/C Compressor Coil
412-065 (T89P-19623-EH)
Holding Fixture, Compressor
Clutch ( ...
