Ford Mustang (1999-2004) Service Manual: Register - LH

Removal

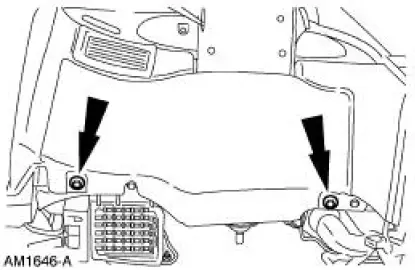

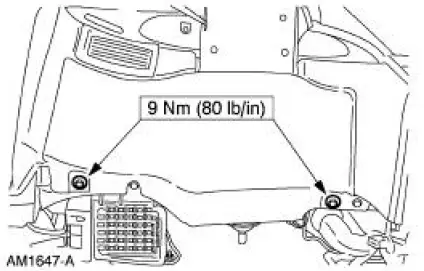

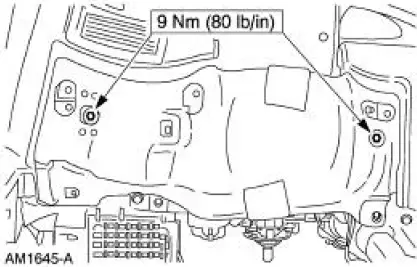

1. Remove the instrument panel steering column cover bolts.

Register - LH

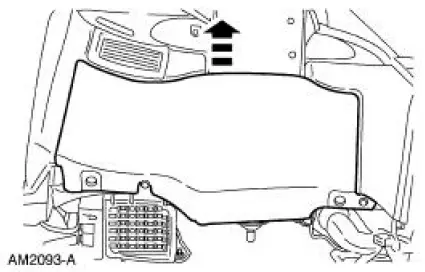

2. Unsnap and remove the instrument panel steering column cover.

Register - LH

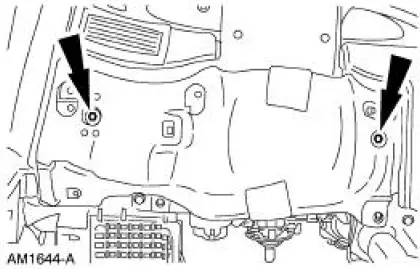

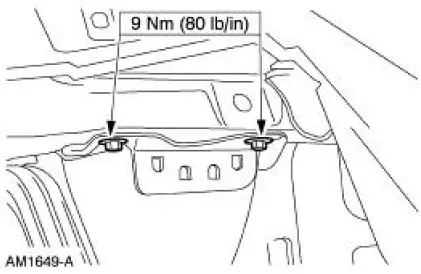

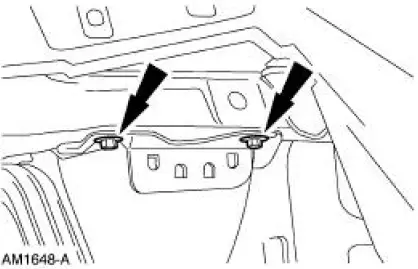

3. Remove the bolts and the steering column reinforcement.

Register - LH

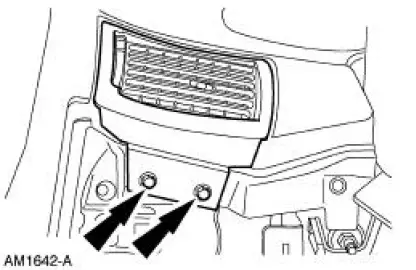

4. Remove the screws.

Register - LH

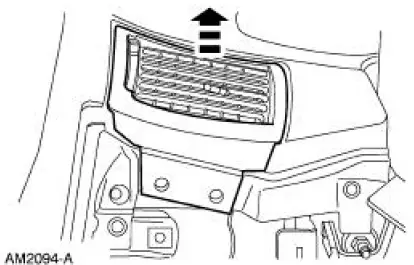

5. Remove the register.

Register - LH

Installation

1. To install, reverse the removal procedure.

Register - LH



Register - LH

Register -Center

Removal and Installation

NOTE: The center register is incorporated into the instrument panel center finish panel.



Nozzle -LH Demister and Hose

Removal

1. Remove the instrument panel. For additional information, refer to Section.

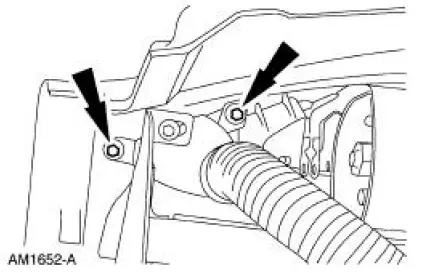

2. Remove the screws.

Nozzle -LH Demister and Hose

3. Remove the hose and the nozzle from the instrument panel.

Installation

1. To install, reverse the removal procedure.



Nozzle -RH Demister and Hose

Removal

1. Remove the instrument panel. For additional information, refer to Section.

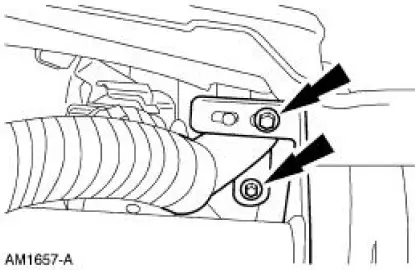

2. Remove the screws.

Nozzle -RH Demister and Hose

3. Remove the hose and the nozzle from the instrument panel.

Installation

1. To install, reverse the removal procedure.



Duct -Floor

Removal

1. Remove the evaporator core housing. For additional information, refer to Section.

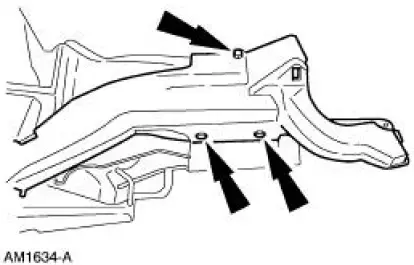

2. Remove the screws and remove the heater outlet floor duct.

Duct -Floor

Installation

1. To install, reverse the removal procedure.



Duct -Defroster

Removal

1. Remove the instrument panel. For additional information, refer to Section.

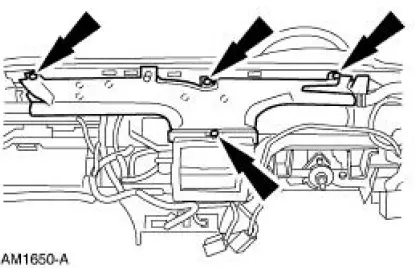

2. Remove the screws and remove the defroster duct.

Duct -Defroster

Installation

1. To install, reverse the removal procedure.



Duct -RH Instrument Panel Register

Removal

1. Remove the instrument panel. For additional information, refer to Section.

2. Remove the screws and remove the duct.

Duct -RH Instrument Panel Register

Installation

1. To install, reverse the removal procedure.

Duct -RH Instrument Panel Register

    Air Distribution
    NOTE: The air distribution system of this vehicle cannot be equipped with a cabin air filter. There are two sources of air available to the air distribution system: outside air recirculated air ...

    Plenum Chamber
    Removal 1. Remove the instrument panel. For additional information, refer to Section. 2. Remove the audio unit. For additional information, refer to Section. 3. If equipped, remove the CD player. Fo ...
