Ford Mustang (1999-2004) Service Manual: Engine (Removal)

Special Tool(s)

Lifting Bracket, Engine 303-D087 (D93P-6001-A1)

Lifting Bracket, Engine 303-D088 (D93P-6001-A2)
Spreader Bar 303-D089 (D93P-6001-A3)

Removal

All vehicles

1. Disconnect the battery ground cable. For additional information, refer to Section.

2. Remove the hood-to-body ground strap.

Engine

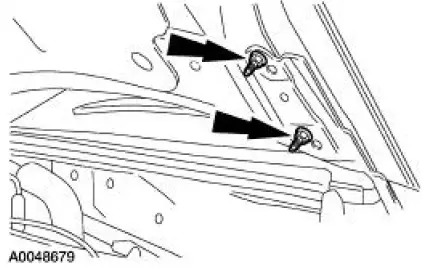

3. NOTE: Mark the hood hinge locations to aid in hood installation.

Remove the four nuts and the hood.

Engine

4. Recover the A/C system. For additional information, refer to Section.

5. Remove the air intake scoop bracket. For additional information, refer to Section.

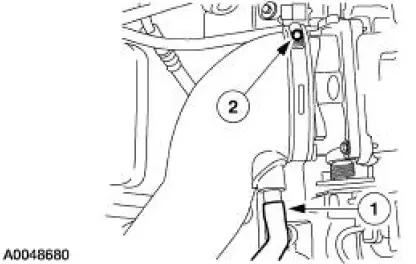

6. Disconnect the air cleaner outlet pipe at the throttle body.

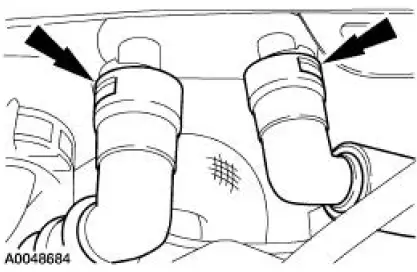

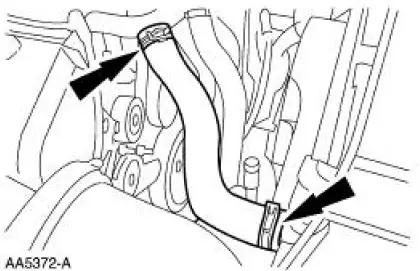

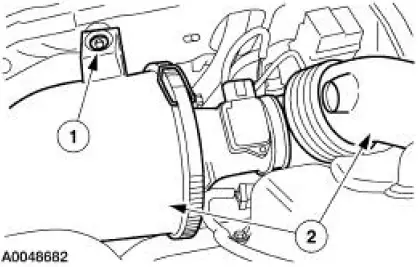

1. Disconnect the positive crankcase ventilation (PCV) inlet tube.

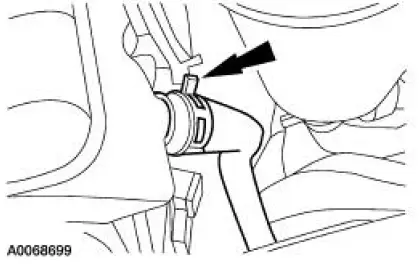

2. Loosen the clamp and disconnect the outlet pipe.

Engine

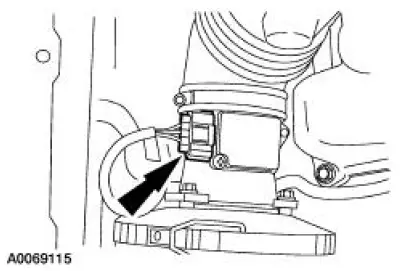

7. Disconnect the mass airflow sensor electrical connector.

Engine

8. Remove the air cleaner.

1. Remove the bolt.

2. Remove the air cleaner and the outlet pipe as an assembly.

Engine

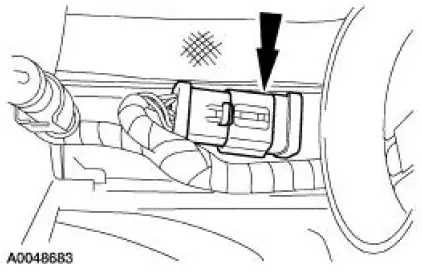

9. Disconnect the electrical connector.

Engine

10. Drain the engine cooling system. For additional information, refer to Section.

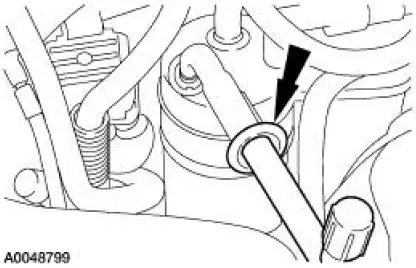

11. Disconnect the fuel tube spring lock coupling. For additional information, refer to Section.

12. Remove the upper radiator hose (8260).

Engine

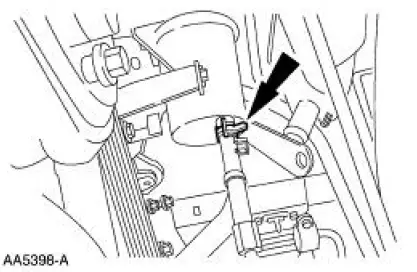

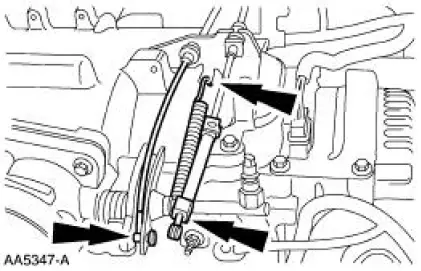

13. Disconnect the throttle cable, and the speed control cable, and remove the throttle return spring.

Engine

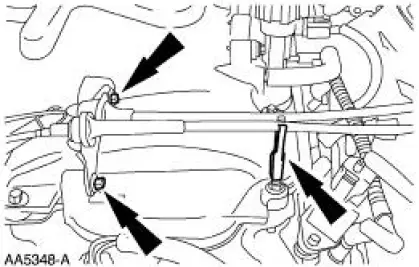

14. Remove the bolts and detach the retainer. Position the cables and the bracket aside.

Engine

15. Disconnect the evaporative emissions return line.

Engine

16. Disconnect the 16-pin and the 42-pin connectors.

Engine

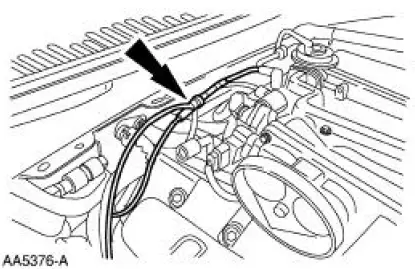

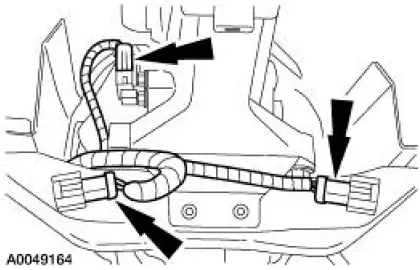

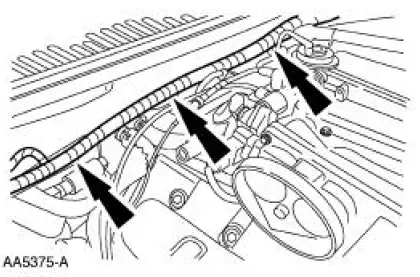

17. Separate the engine control sensor wiring in three locations and position onto the engine.

Engine

18. Disconnect the vacuum hoses.

Engine

19. Disconnect the heater hoses.

Engine

20. Remove the wiring support bracket.

Engine

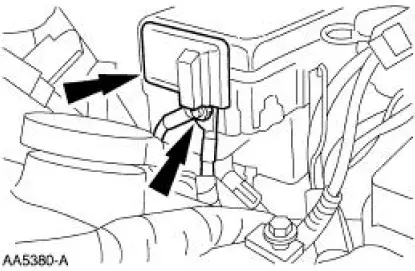

21. Disconnect the connectors.

Engine

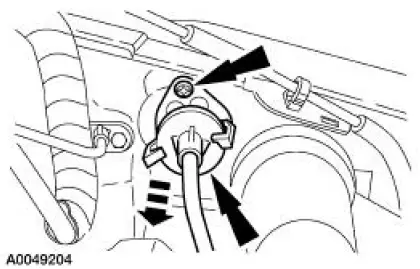

22. Raise the cover and remove the nut and cables.

Engine

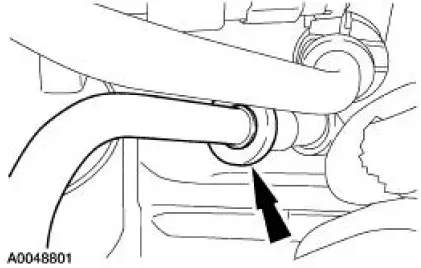

23. Disconnect the hose from the coolant bypass tube.

Engine

24. Disconnect the A/C suction tube from the accumulator.

Engine

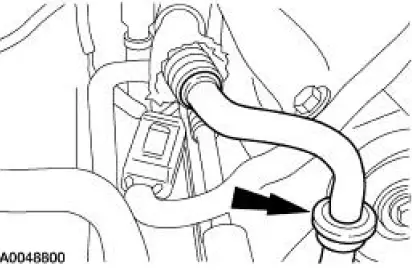

25. Disconnect and remove the A/C suction tube.

Engine

26. Disconnect the A/C tube. Position A/C tube aside.

Engine

27. NOTE: The lifting bracket bolts will be installed when the vehicle is raised.

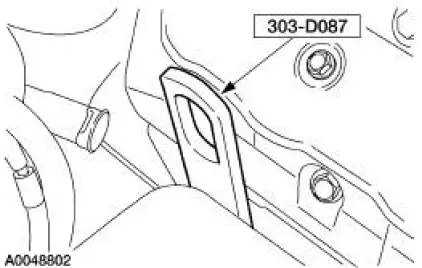

Position the RH lifting bracket.

Engine

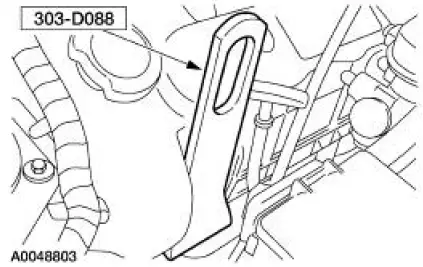

28. Install the LH lifting bracket.

Engine

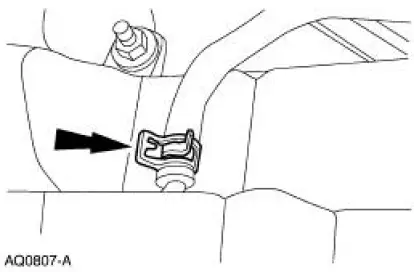

29. Disconnect the radiator vent hose from the degas bottle.

Engine

30. Remove the degas bottle return hose.

Engine

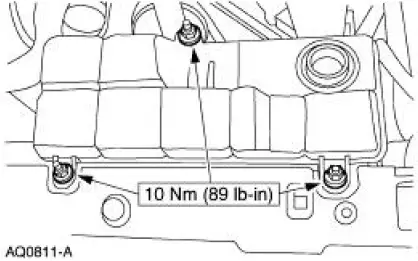

31. Remove the nuts and the degas bottle

Engine

32. Remove the shifter.

33. Remove the dual converter H-pipe.

34. Drain the engine oil.

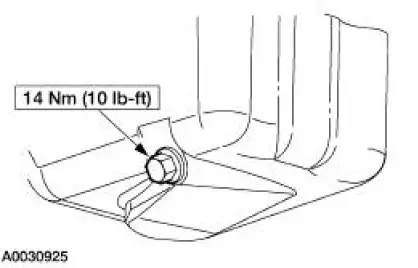

  • Install the drain plug when finished.

Engine

35. Position the A/C muffler aside.

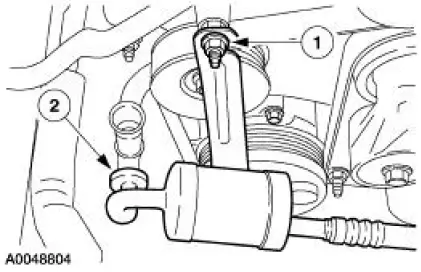

1. Remove the bracket retainer.

2. Disconnect the A/C tube and position the A/C muffler aside.

Engine

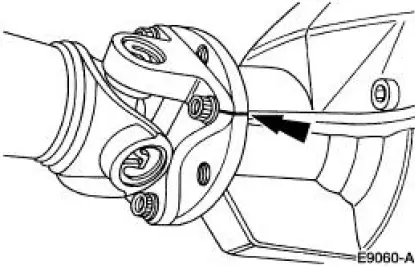

36. Index-mark the driveshaft flange and the rear axle pinion flange.

Engine

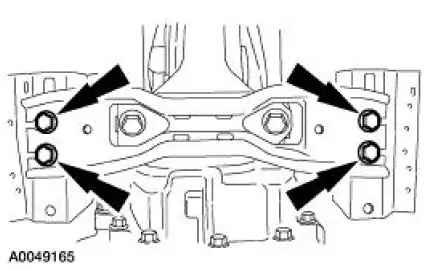

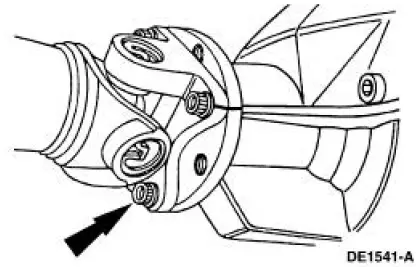

37. Remove the four bolts

Engine

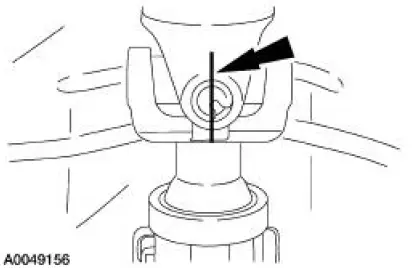

38. Index-mark the driveshaft at the six o'clock position.

Engine

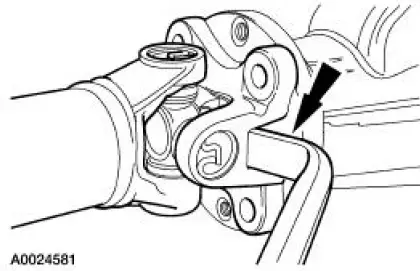

39. CAUTION: the driveshaft flange fits tightly on the rear axle pinion flange pilot. Never hammer on the driveshaft or any of its components to disconnect the driveshaft flange from the pinion flange. Pry only in the area shown, with a suitable tool, to disconnect the driveshaft flange from the pinion flange.

NOTE: Do not rotate the driveshaft.

Using a suitable tool, disconnect the driveshaft flange from the rear axle flange and remove the driveshaft.

Engine

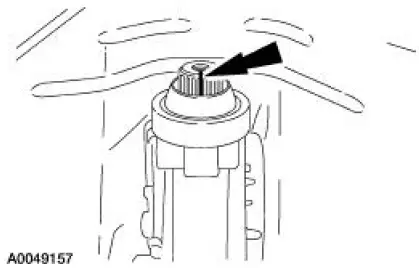

40. Index-mark the transmission output shaft at the six o'clock position.

Engine

41. Remove the starter motor terminal cover.

Engine

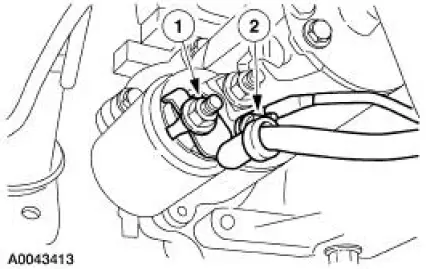

42. Disconnect the starter wiring.

1. Remove the nut and disconnect the battery positive cable.

2. Remove the nut and disconnect the starter solenoid wire.

Engine

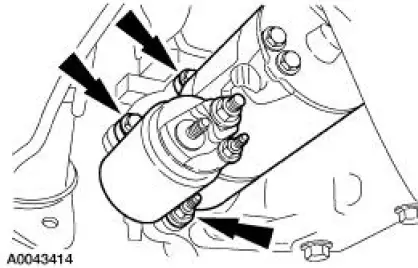

43. Remove the three bolts and the starter.

Engine

Automatic transmission vehicles

44. Remove the flywheel inspection cover.

Engine

45. Remove the torque converter nuts.

Engine

All vehicles

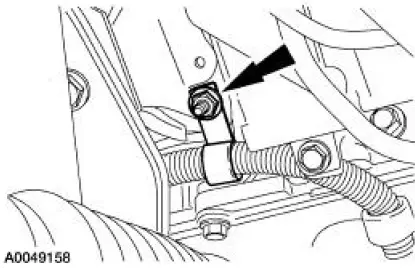

46. Remove the nut and the wiring harness bracket.

Engine

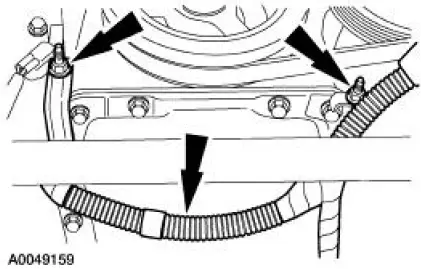

47. Remove the nuts and position the wiring harness aside.

Engine

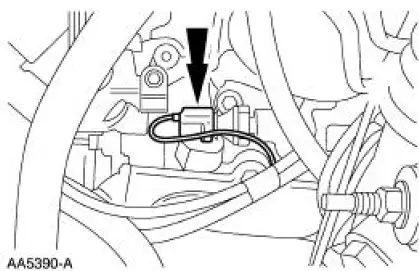

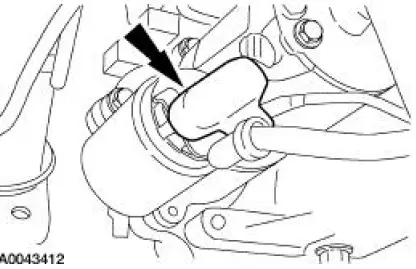

48. Disconnect the oil pressure sensor.

Engine

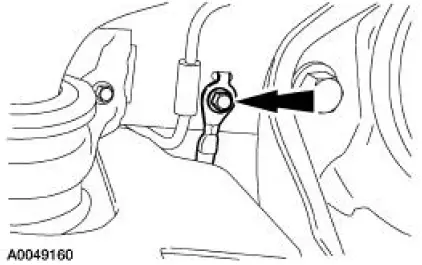

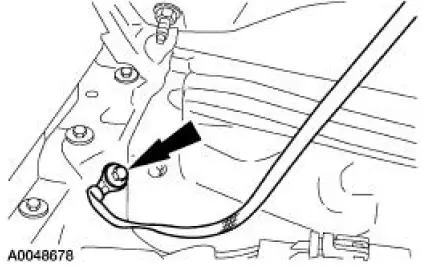

49. Remove the nut and the engine ground cable.

Engine

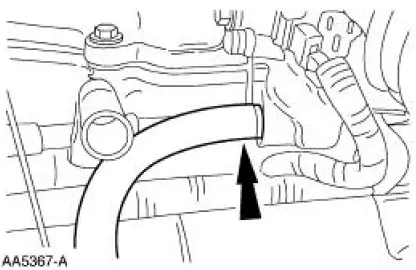

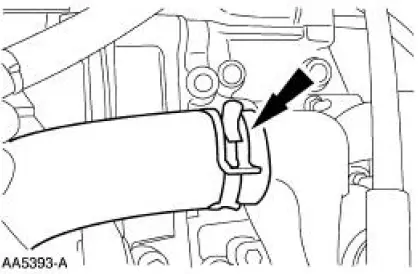

50. Disconnect the hose from the oil filter adapter.

Engine

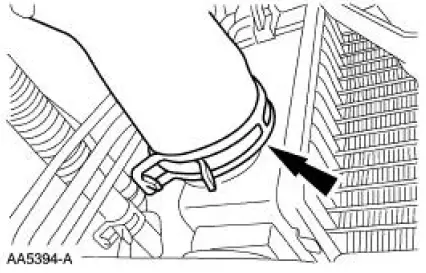

51. Disconnect and remove the lower hose from the radiator.

Engine

52. NOTE: Drain the power steering fluid into a suitable container.

Disconnect the hose from the power steering reservoir.

Engine

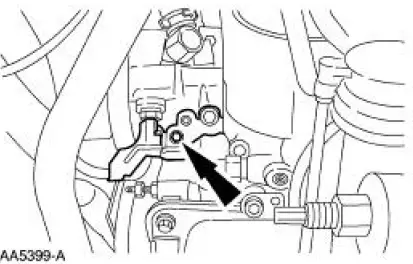

53. Remove the bolt and the anti-rotation clip.

Engine

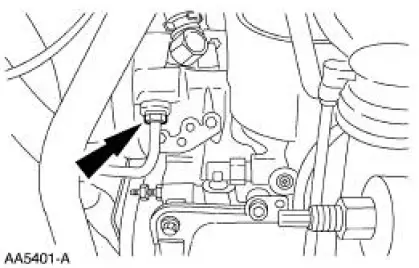

54. Loosen the fitting and disconnect the high pressure hose from the power steering pump.

Engine

55. Remove the ground strap bolt.

Engine

56. Remove the degas bottle support bracket.

Engine

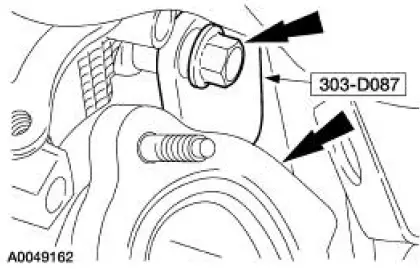

57. Install the two bolts from the RH lifting bracket.

Engine

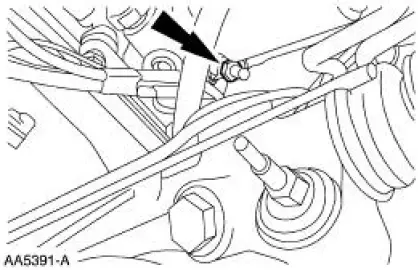

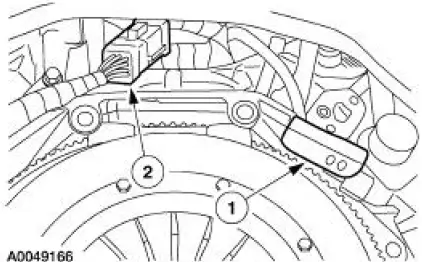

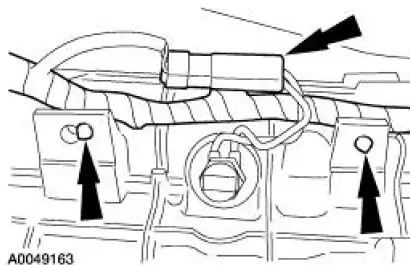

58. Disconnect the reversing lamp switch electrical connector, and the wiring harness from the transmission.

Engine

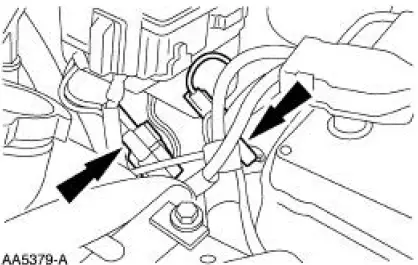

59. Disconnect the output shaft speed (OSS) sensor electrical connector and detach the left and right oxygen sensor electrical connectors from the crossmember.

Engine

Manual transmission vehicles

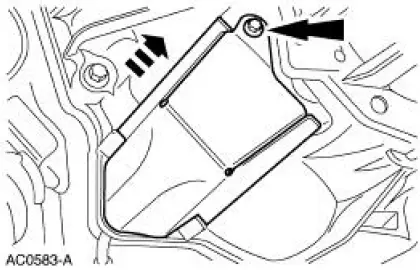

60. Remove the bolt and the clutch release lever cover.

Engine

61. CAUTION: To prevent component damage, do not depress the clutch pedal with the transmission removed.

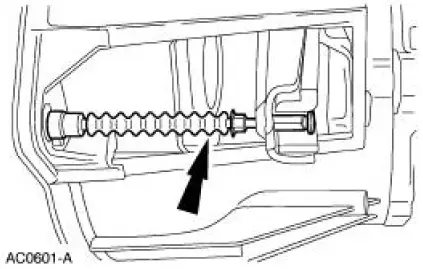

Detach the clutch release cable from the clutch release fork.

Engine

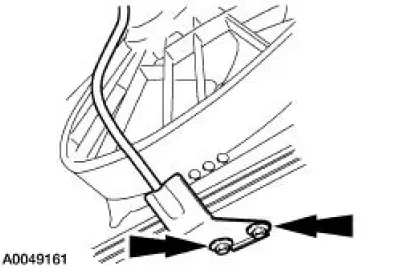

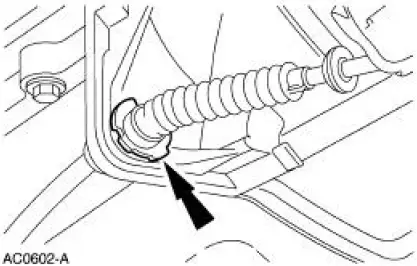

62. Remove the clutch cable retainer and remove the clutch cable from the transmission.

Engine

All vehicles

63. Position a transmission jack and support the transmission.

Engine

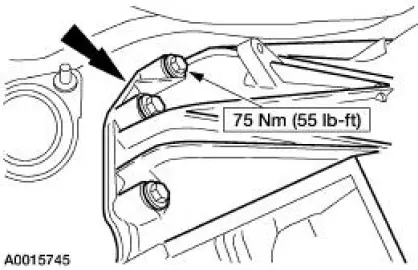

64. Remove the transmission crossmember bolts.

Engine

Automatic transmission vehicles

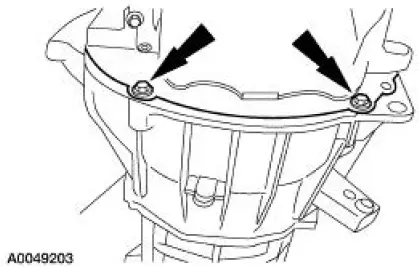

65. Remove the bolts

Engine

All vehicles

66. Lower the transmission, remove the seven bolts, and remove the transmission.

Engine

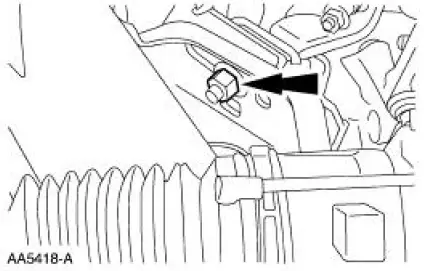

67. NOTE: RH side shown, LH side similar.

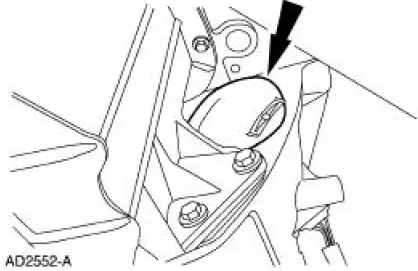

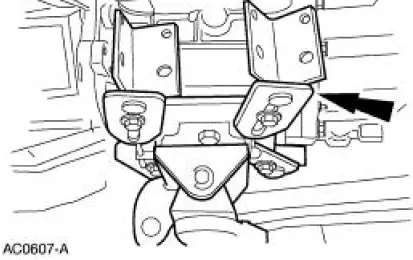

Remove the two engine mount nuts.

Engine

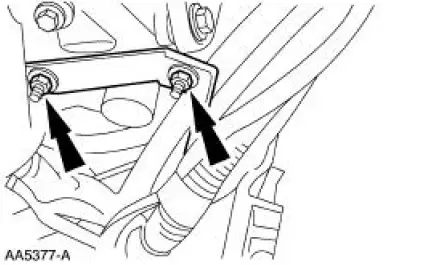

68. Remove the transmission wiring harness.

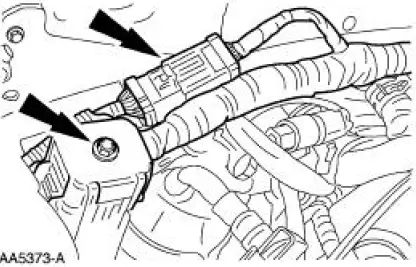

1. Remove the RH oxygen sensor connector from the bracket.

2. Disconnect the transmission wiring connector and remove the harness.

Engine

69. Lower the vehicle.

Manual transmission vehicles

70. Remove the two screws and position the clutch cable aside.

Engine

All vehicles

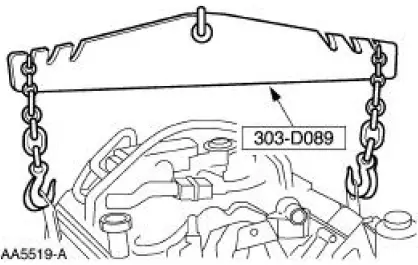

71. Attach the special tool to a floor crane and the engine, and remove the engine from the vehicle.

Engine
