Ford Mustang Service Manual: Horn

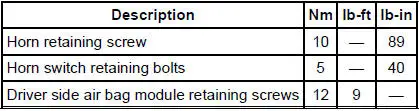

Torque Specifications
.jpg)
Horn
The horn system consists of the following:
- dual horns (one high-pitched, one low-pitched)
- horn switch (located underneath the driver side air bag module [043B13]).
- horn relay (located in the central junction box [CJB]).
Warning Indicator Bulb
Instrument Cluster (Removal and Installation)
Removal and Installation
All vehicles
1. CAUTION: Electronic modules are sensitive to electrical
charges. If exposed to
these charges, damage may ...
Horn (Diagnosis and Testing)
Horn (Diagnosis and Testing)
Refer to Wiring Diagrams Cell 44 , Horns/Cigar Lighter for schematic
and connector information.
Special Tool(s)
73 Digital Multimeter or
equivalent
1 ...
