Ford Mustang (1999-2004) Service Manual: Supercharger Belt Tensioner

Removal and Installation

1. Remove the supercharger drive belt cover.

Supercharger Belt Tensioner

2. Rotate the supercharger belt tensioner clockwise and remove the supercharger belt.

Supercharger Belt Tensioner

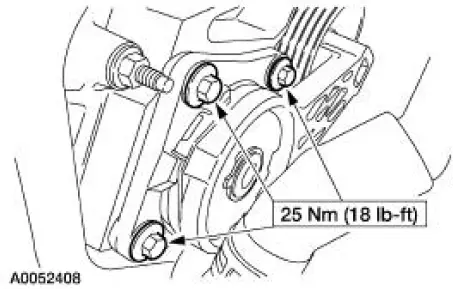

3. Remove the bolts and the supercharger belt tensioner.

Supercharger Belt Tensioner

4. To install, reverse the removal procedure.

    Accessory Drive Belt Tensioner - 4.6L (2V) and (4V)
    Removal and Installation Mach I 1. Remove the air intake scoop. For additional information, refer to Section. Cobra 2. Remove the supercharger drive belt cover. 3. Rotate the supercharger belt tensi ...

    Accessory Drive Belt Idler Pulley - 3.8L
    Removal and Installation 1. Remove the drive belt. For additional information, refer to Accessory Drive Belt-3.8L in this section. 2. Remove the belt idler pulley. Remove the bolt. 3. To instal ...
