Ford Mustang (1999-2004) Service Manual: Wheels and Tires

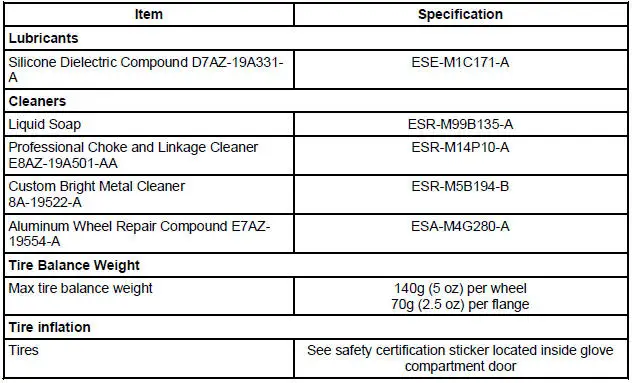

General Specifications

General Specifications

Torque Specifications

Description Nm lb-ft
Wheel nuts 129 95
