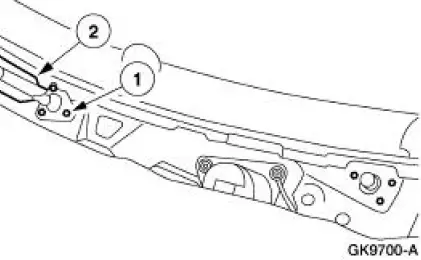

Ford Mustang Service Manual: Mounting Arm and Pivot Shaft

Ford Mustang Service Manual / Body / Wipers and Washers / Mounting Arm and Pivot Shaft

Wipers and Washers (Diagnosis and Testing)

Refer to Wiring Diagrams Cell 59 , Generic Electronic Module for schematic and connector information.

Refer to Wiring Diagrams Cell 81 , Interval Wiper/Washer for schematic and connector information.

Special Tool(s)




Alternator, Regulator, Battery Alternator, Regulator, Battery and Starter Tester (ARBST) or equivalent 010-00725
73 Digital Multimeter or 73 Digital Multimeter or equivalent 105-R0051
Worldwide Diagnostic System Worldwide Diagnostic System (WDS) 418-F224 New Generation STAR (NGS) Tester 418-F052, or equivalent diagnostic tool

Principles of Operation

Multifunction Wipers

The front wiper/washer feature controls the speed of the front windshield wipers and the amount of washer fluid sprayed on the front windshield when requested by the customer. There are five (5) wiper modes: OFF, LOW, HIGH, INTERVAL, and WASH.

Wiper Motor Speeds HIGH and LOW

There are two wiper speeds, HIGH and LOW. When the GEM detects the ignition switch circuits are in the RUN or ACC states, and the GEM detects a high or low speed request from the wiper mode circuits, the GEM will activate the wiper ON and OFF and the wiper speed circuits accordingly.

Wiper Motor Speeds Interval

There are one to seven wiper speed intervals, ranging from 1.5 seconds to 20 seconds in delay time respectively, which can be selected. When the GEM detects the ignition switch circuits are in the RUN or ACC states, and the GEM detects an interval selection of 1 through 7 from the delay/wash circuits, the GEM will activate the wiper ON and OFF and the wiper speed circuits accordingly.

Washers

When the GEM detects the ignition switch circuits are in RUN or ACC states, and the GEM detects a WASH request from the wiper delay/wash circuits, the GEM will activate the washer pump relay circuit for as long as the request is present up to 10 seconds.

Activation of the washer pump when in INTERVAL or OFF is delayed until a wash request is active for a minimum amount of time. In this scenario, the wash request must be present continuously for at least 210 ms. This allows a wash request that is present for less than 210 ms, to provide additional functionality by initiating a single wipe, called "mist wipe". The mist wipe function is a single wipe at low speed without activating the washer motor.

When in LOW or HIGH, any WASH request, regardless of the length of time it is present, will activate the washer pump. When in INTERVAL or OFF mode, upon deactivation of the washer motor, this feature shall provide two wipes at low speed before returning to the INTERVAL or OFF state as defined by the inputs. These additional wipes are provided to clear residual washer fluid from the front windshield.

Inspection and Verification

1. Verify the customer concern by operating the wiper/washer system.

2. Visually inspect for obvious signs of mechanical and electrical damage.

Visual Inspection Chart

Mechanical Electrical
  • Hoses to windshield washer pump
  • Wiper linkage
  • CJB Fuse 39 (5A)
  • CJB Fuse 26 (30A)
  • Wiring harness
  • Loose or corroded connector(s)
  • Relays
  • Motors
  • Multifunction switch
  • GEM

3. If the concern remains after the inspection, connect the diagnostic tool to the data link connector (DLC) located beneath the instrument panel and select the vehicle to be tested from the diagnostic tool menu. If diagnostic tool does not communicate with the vehicle:

  • Check that the program card is correctly installed.
  • Check the connections to the vehicle.
  • Check the ignition switch position.

4. If diagnostic tool still does not communicate with the vehicle, refer to the diagnostic tool manual.

5. Carry out the DATA LINK DIAGNOSTIC TEST. If diagnostic tool responds with:

  • CKT914, CKT915 or CKT70 = ALL ECUS NO RESP/NOT EQUIP, refer to Section.
  • NO RESPONSE/NOT EQUIPPED for GEM, go to Pinpoint Test A.
  • SYSTEM PASSED, retrieve and record the continuous diagnostic trouble codes (DTCs), erase the continuous DTCs and carry out self-test diagnostics for the GEM.

6. If the DTCs retrieved are related to the concern, go to GEM Diagnostic Trouble Code (DTC) Index to continue diagnostics.

7. If no DTCs related to the concern are retrieved, proceed to Symptom Chart to continue diagnostics.

GEM Diagnostic Trouble Code (DTC) Index


Symptom Chart


Symptom Chart

Condition Possible Sources Action
  • No communication with the generic electronic module
  • CJB Fuse 39 (5A).
  • Circuitry.
  •  GEM.
  • GO to Pinpoint Test A .
  • The wipers are inoperative
  • CJB Fuse 26 (30A).
  • Ignition switch.
  • Circuitry.
  • GEM.
  • Multifunction switch (13K359).
  • Wiper ON/OFF relay.
  • Wiper HIGH/LOW relay.
  • Wiper motor.
  • GO to Pinpoint Test B .
  • The wipers stay on continuously
  • Circuitry.
  • GEM.
  • Multifunction switch.
  • Wiper ON/OFF relay.
  • Wiper HIGH/LOW relay.
  • Wiper motor.
  • GO to Pinpoint Test B .
  • The HIGH and LOW wiper speeds do not operate correctly
  • Circuitry.
  • GEM.
  • Multifunction switch.
  • Wiper HIGH/LOW relay.
  • Wiper motor.
  • DTC B1434.
  • GO to Pinpoint Test B
  • The intermittent wiper mode does not operate correctly
  • Circuitry.
  • GEM.
  • Multifunction switch.
  • Wiper motor.
  • GO to Pinpoint Test B
  • The washer pump is inoperative
  • CJB Fuse 26 (30A).
  • Circuitry.
  • GEM.
  • Multifunction switch.
  • Washer pump relay.
  • Washer pump.
  • Ignition switch.
  • GO to Pinpoint Test C .
  • The low wiper speed does not operate correctly
  • Circuitry.
  • Multifunction switch.
  • Wiper HIGH/LOW relay.
  • Wiper motor.
  • GEM.
  • DTC B1473.
  • DTC B1434.
  • GO to Pinpoint Test B .

Pinpoint Tests

CAUTION: Before removing and installing the GEM or its connectors, disconnect the battery. Failure to follow this caution will result in the GEM storing many erroneous DTCs and it may exhibit erratic operation after installation.

CAUTION: Be careful when probing the central junction box (CJB), battery junction box (BJB) or any connectors. Damage will result to the connector receptacle if the probe being used is too large.

CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

NOTE: If continuous DTCs are recorded and the symptom is not present when carrying out the pinpoint tests, an intermittent concern may be the cause. Always check for loose connections and corroded terminals.

NOTE: Complete the entire pinpoint test related to the symptom before installing a new GEM.

PINPOINT TEST A: NO COMMUNICATION WITH THE GENERIC ELECTRONIC MODULE (GEM)

Test Step Result / Action to Take
CAUTION: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.
A1 CHECK THE GENERIC ELECTRONIC MODULE (GEM) POWER SUPPLY Yes

GO to A2 .

No

REPAIR the circuit(s) in question. TEST the system for normal operation.
  • Key in OFF position.
  • Disconnect: Generic Electronic Module (GEM) C201a.
  • Disconnect: GEM C201b.
  • Key in ON position.
  • Using the following table. measure the voltage between the GEM, harness side and ground


  • Are the voltages greater than 10 volts?
A2 CHECK THE GEM GROUND CIRCUIT 397 (BK/WH) FOR OPEN Yes

GO to A3 .

No

REPAIR the cirucit(s) in question. TEST the system for normal operation.
  • Key in OFF position.
  • Measure the resistance between the GEM C201b pin 4, circuit 397 (BK/WH), harness side and ground.


  • Is the resistance less than 5 ohms?
A3 CHECK CIRCUIT 397 (BK/WH) FOR SHORT TO POWER Yes

REPAIR the circuit. TEST the system for normal operation.

No

REFER to Section
  • Measure the voltage between the GEM C201b pin 4, circuit 397 (BK/WH), harness side and ground.


  • Is any voltage present?

PINPOINT TEST B: WINDSHIELD WIPERS DO NOT OPERATE / OPERATE CORRECTLY

Test Step Result / Action to Take
B1 DETERMINE IF GEM IS RECEIVING CORRECT IGNITION SWITCH STATUS Yes

GO to B2 .

No

REFER to Section
  • Key in OFF position.
  • Connect the diagnostic tool.
  • NOTE: If the vehicle is equipped with a manual transmission, depress the clutch while turning the ignition switch to START.
  • Monitor the GEM PIDs IGN_S, IGN_R IGN_A, and IGN_KEY while turning the ignition switch through the START, RUN, OFF and ACC positions.
  • Do the GEM PID values agree with the ignition switch positions?
B2 DETERMINE IF GEM IS RECEIVING CORRECT WIPER SWITCH STATUS FROM MULTIFUNCTION SWITCH Yes

GO to B3 .

No

GO to B6
  • Key in ON position.
  • Monitor PID WPMODE, while moving through all wiper control positions on the multifunction switch.
  • Do the GEM PID values agree with switch positions?
B3 TEST GEM CONTROL OF WIPER ON/OFF RELAY Yes

GO to B4

No

GO to B10
  • Trigger the GEM active command WIPER RLY ON and OFF.
  • Do the wipers turn ON and OFF?
B4 TEST THE GEM CONTROL OF WIPER HIGH/LOW RELAY Yes

GO to B5 .

No

GO to B16 .
  • Trigger the GEM active command WIPER RLY to ON.
  • Trigger the GEM active command SPEED RLY ON and OFF.
  • Does wiper speed change on activation and deactivation of SPEED RLY command?
B5 DETERMINE IF GEM IS RECEIVING CORRECT WIPER POSITION STATUS Yes

INSTALL a new GEM. For additional information, REFER to Section.

CLEAR the DTCs. REPEAT the self-test.

No

GO to B27 .
  • Monitor GEM PID WPPRKSW while turning the wipers ON using the multifunction switch.
  • Do the PID values agree with the wiper position?
B6 TEST THE MULTIFUNCTION SWITCH FOR NORMAL OPERATION Yes

GO to B7 .

No

INSTALL a new multifunction switch; REFER to Section . REPEAT the selftest.

CLEAR the DTCs
  • Disconnect: Multifunction Switch C202a.
  • Check the multifunction switch. Refer to Wiring Diagrams, Cell 149, Component Testing.
  • Is the multifunction switch OK?
B7 CHECK CIRCUITS 682 (DB), 684 (PK/YE), AND 680 (LB/OG) FOR SHORT TO BATTERY BETWEEN THE GEM AND THE MULTIFUNCTION SWITCH Yes

REPAIR the circuit(s) in question. REPEAT the selftest.

CLEAR the DTCs.

No

GO to B8 .
  • Disconnect: GEM C201e.
  • Key in ON position.
  • Using the following table, measure the voltage between the GEM C201e Pins, harness side and ground.


  • Are the voltages greater than 10 volts?
B8 CHECK CIRCUITS 682 (DB), 684 (PK/YE), AND 680 (LB/OG) FOR SHORT TO GROUND BETWEEN THE GEM AND THE MULTIFUNCTION SWITCH Yes

REPAIR the circuit(s) in question. REPEAT the selftest.

CLEAR the DTCs.

No

GO to B9 .
  • Key in OFF position.
  • Using the following table, measure the resistance between the GEM C201e Pins, harness side and ground.


  • Are the resistances greater than 10,000 ohms?
B9 CHECK CIRCUITS 682 (DB), 684 (PK/YE), AND 680 (LB/OG) FOR AN OPEN CONDITION BETWEEN GEM AND MULTIFUNCTION SWITCH Yes

INSTALL a new GEM. For additional information, REFER to Section.

REPEAT the self-test.

CLEAR the DTCs.

No

REPAIR circuit(s) in question.

REPEAT the self-test.

CLEAR the DTCs.
  • Using the following table, measure the resistance between the GEM C201e Pins, harness side and multifunction switch C202a Pins, harness side.


  • Are the resistances less than 5 ohms?
B10 CHECK CIRCUITS 65 (DG) FOR OPEN CIRCUIT CONDITION BETWEEN BJB AND CJB Yes

GO to B11 .

No

REPAIR circuit(s) in question.

REPEAT the self-test.

CLEAR the DTCs.
NOTE: Verify voltage at CJB F26 (30A) before carrying out this test.
  • Disconnect: Wiper On/Off Relay.
  • Measure the voltage between BJB ON and OFF wiper relay Pin 5, Circuit 65 (DG), harness side and ground; and between BJB wiper ON/OFF relay Pin 2, Circuit 65 (DG), harness side and ground


  • Are the voltages greater than 10 volts?
B11 ISOLATE PROBLEM BETWEEN GEM AND BJB Yes

GO to B12 .

No

GO to B22 .
  • Key in OFF position.
  • Connect a fused jumper wire (30A) between wiper ON/OFF relay Pin 3 and Pin 5, harness side.


  • Key in ON position.
  • Did the wiper motor activate?
B12 CARRY OUT THE WIPER ON/OFF RELAY COMPONENT TEST Yes

GO to B13 .

No

INSTALL a new wiper ON/OFF relay. REPEAT the self-test. CLEAR the DTCs
  • Check the wiper ON and OFF relay; refer to Wiring Diagrams, Cell 149, Component Testing.
  • Is the ON/OFF wiper relay OK?
B13 CHECK CIRCUIT 646 (YE/WH) FOR SHORT TO BATTERY BETWEEN GEM AND BJB Yes

REPAIR Circuit 646 (YE/WH). REPEAT the selftest.

CLEAR the DTCs.

No

GO to B14 .
  • Disconnect: Wiper On/Off Relay.
  • Disconnect: GEM C201d.
  • Measure the voltage between GEM C201d 3 Pin 12, Circuit 646 (YE/WH), harness side and ground.


  • Is the voltage greater than 10 volts?
B14 CHECK CIRCUIT 646 (YE/WH) FOR SHORT TO GROUND BETWEEN GEM AND BJB Yes

GO to B15 .

No

REPAIR Circuit 646 (YE/WH). REPEAT the selftest.

CLEAR the DTCs.
  • Measure the resistance between GEM C201d Pin 12, Circuit 646 (YE/WH), harness side and ground


  • Is the resistance greater than 10,000 ohms?
B15 CHECK CIRCUIT 646 (YE/WH) FOR OPEN BETWEEN GEM AND BJB Yes

INSTALL a new GEM. For additional information REFER to Section. REPEAT the self-test. CLEAR the DTCs.

No

REPAIR Circuit 646 (YE/WH). REPEAT the selftest.

CLEAR the DTCs.
  • Measure the resistance between GEM C201d Pin 12, Circuit 646 (YE/WH), harness side and BJB wiper ON/OFF relay Pin 1, Circuit 646 (YE/WH), harness side.


  • Is the resistance less than 5 ohms?
B16 CHECK CIRCUITS 65 (DG) AND 61 (YE/RD) FOR OPEN CONDITION BETWEEN BJB AND CJB Yes

GO to B17 .

No

REPAIR circuit in question.

REPEAT the self-test.

CLEAR the DTCs.
  • Disconnect: Wiper HIGH/LOW Relay.
  • Trigger the GEM active command WIPER RLY to ON.
  • Measure the voltages between BJB wiper HIGH/LOW relay Pin 86, Circuit 65 (DG), harness side and ground; and between BJB wiper HIGH/LOW relay Pin 30, Circuit 61 (YE/RD), harness side and ground.


  • Are the voltages greater than 10 volts?
B17 ISOLATE THE PROBLEM BETWEEN THE GEM AND THE BJB Yes

GO to B18 .

No

GO to B26 .
  • Trigger the GEM active command WIPER RLY to ON.
  • Connect a fused jumper wire (30A) between wiper HIGH/LOW relay Pin 30, Circuit 61 (YE/RD), harness side and Pin 87, Circuit 58 (WH), harness side.


  • Did the wiper motor speed increase with the jumper installed and slow down with the jumper removed?
B18 CARRY OUT COMPONENT TEST ON WIPER HIGH/LOW RELAY Yes

GO to B19 .

No

INSTALL a new wiper HIGH/LOW relay. REPEAT the self-test. CLEAR the DTCs.
  • Check the wiper HIGH/LOW relay; refer to Wiring Diagrams, Cell 149, Component Testing.
  • Is the wiper HIGH/LOW relay OK?
B19 CHECK CIRCUIT 647 (GY/LB) FOR SHORT TO BATTERY BETWEEN GEM AND BJB Yes

REPAIR Circuit 647 (GY/LB).

REPEAT the self-test.

CLEAR the DTCs.

No

GO to B20 .
  • Disconnect: GEM C201d.
  • Measure voltage between GEM C201d Pin 5, Circuit 647 (GY/LB), harness side and ground.


  • Is the voltage greater than 10 volts?
B20 CHECK CIRCUIT 647 (GY/LB) FOR SHORT TO GROUND BETWEEN GEM AND BJB Yes

GO to B21 .

No

REPAIR Circuit 647 (GY/LB).

REPEAT the self-test.

CLEAR the DTCs.
  • Measure the resistance between GEM C201d Pin 5, Circuit 647 (GY/LB), harness side and ground.


  • Is the resistance greater than 10,000 ohms?
B21 CHECK CIRCUIT 647 (GY/LB) FOR OPEN CONDITION BETWEEN GEM AND BJB Yes

INSTALL a new GEM.

REFER to Section.

REPEAT the self-test.

CLEAR the DTCs.

No

REPAIR Circuit 647 (GY/LB).

REPEAT the self-test.

CLEAR the DTCs.
  • Measure the resistance between GEM C201d Pin 5, Circuit 647 (GY/LB), harness side and wiper HIGH/LOW relay Pin 85, Circuit 647 (GY/LB), harness side.


  • Is the resistance less than 5 ohms?
B22 CHECK CIRCUIT 61 (YE/RD) FOR OPEN CIRCUIT CONDITION BETWEEN WIPER ON/OFF AND HIGH/LOW RELAYS Yes

GO to B23 .

No

REPAIR Circuit 61 (YE/RD).

REPEAT the self-test.

CLEAR the DTCs.
  • Disconnect: Wiper HIGH/LOW Relay.
  • Disconnect: Wiper ON/OFF Relay.
  • Measure the resistance between wiper ON/OFF relay Pin 3, Circuit 61 (YE/RD), harness side and wiper HIGH/LOW relay Pin 30, Circuit 61 (YE/RD), harness side


  • Is the resistance less than 5 ohms?
B23 CARRY OUT THE WIPER HIGH/LOW RELAY COMPONENT TEST Yes

GO to B24 .

No

INSTALL a new wiper HIGH/LOW relay. REPEAT the self-test. CLEAR the DTCs.
  • Check the wiper HIGH/LOW relay; refer to Wiring Diagrams, Cell 149, Component Testing.
  • Is the wiper HIGH/LOW relay OK?
B24 CHECK CIRCUIT 56 (DB/OG) FOR AN OPEN CIRCUIT BETWEEN THE WIPER HIGH/LOW RELAY AND THE WIPER MOTOR Yes

GO to B25 .

No

REPAIR Circuit 56 (DB/OG).

REPEAT the self-test.

CLEAR the DTCs.
  • Disconnect: Wiper Motor C125.
  • Measure the resistance between wiper HIGH/LOW relay Pin 87A, Circuit 56 (DB/OG), harness side and wiper motor C125 Pin 4, Circuit 56 (DB/OG), harness side.


  • Is the resistance less than 5 ohms?
B25 CHECK CIRCUIT 1205 (BK) FOR OPEN CIRCUIT CONDITION BETWEEN WIPER MOTOR AND GROUND Yes

CARRY OUT the windshield wiper motor component test.

REFER to Component Test.

If the component fails, INSTALL a new wiper motor; REFER to Motor-Windshield Wiper . REPEAT the self-test.

CLEAR the DTCs.

No

REPAIR Circuit 1205 (BK).

REPEAT the self-test.

CLEAR the DTCs.
  • Measure the resistance between wiper motor C125 Pin 3, Circuit 1205 (BK), harness side and ground


  • Is the resistance less than 5 ohms?
B26 CHECK CIRCUIT 58 (WH) FOR AN OPEN CIRCUIT BETWEEN THE WIPER HIGH/LOW RELAY AND THE WIPER MOTOR Yes

CARRY OUT the windshield wiper motor component test.

REFER to Component Test.

If the component fails, INSTALL a new wiper motor; REFER to Motor-Windshield Wiper . REPEAT the self-test.

CLEAR the DTCs.

No

REPAIR Circuit 58 (WH).

REPEAT the self-test.

CLEAR the DTCs.
  • Disconnect: Wiper Motor C125.
  • Measure the resistance between wiper motor C125 Pin 5, Circuit 58 (WH), harness side and wiper HIGH/LOW relay Pin 87, Circuit 58 (WH), harness side.c


  • Is the resistance less than 5 ohms?
B27 CHECK CIRCUIT 28 (BK/PK) FOR OPEN CIRCUIT CONDITION BETWEEN THE WIPER HIGH/LOW RELAY AND THE WIPER MOTOR Yes

INSTALL a new wiper motor; REFER to Motor-Windshield Wiper . REPEAT the self-test.

CLEAR the DTCs.

No

REPAIR Circuit 28 (BK/PK).

REPEAT the self-test.

CLEAR the DTCs.
  • Disconnect: Wiper Motor C125.
  • Disconnect: GEM C201d.
  • Measure the resistance between wiper motor C125 Pin 1, Circuit 28 (BK/PK), harness side and GEM C201d Pin 1, Circuit 58 (WH), harness side.


  • Is the resistance less than 5 ohms?

PINPOINT TEST C: WINDSHIELD WASHERS DO NOT OPERATE / OPERATE CORRECTLY

Test Step Result / Action to Take
C1 DETERMINE IF GEM IS RECEIVING CORRECT IGNITION SWITCH STATUS Yes

GO to C2 .

No

REFER to Section
  • Key in OFF position.
  • Connect the diagnostic tool.
  • NOTE: If the vehicle is equipped with a manual transmission, depress the clutch while turning the ignition switch to START.
  • Monitor the GEM PIDs IGN_S, IGN_R IGN_A, and IGN_KEY while turning the ignition switch through the START, RUN, OFF and ACC positions.
  • Do the GEM PID values agree with the ignition switch positions?
C2 DETERMINE IF GEM IS RECEIVING CORRECT WIPER SWITCH STATUS FROM MULTIFUNCTION SWITCH Yes

GO to C3 .

No

GO to Pinpoint Test B .
  • Key in ON position.
  • Monitor GEM PID WPMODE while activating all wiper control positions on the multifunction switch.
  • Does the GEM PID values agree with switch positions?
C3 CHECK GEM CONTROL OF THE WASHER ON/OFF RELAY Yes

INSTALL a new GEM; REFER to Section . REPEAT the self-test. CLEAR the DTCs.

No

GO to C4 .
  • Trigger GEM active command WASH RLY ON and OFF.
  • Do washers turn ON and OFF?
C4 CHECK CIRCUIT 65 (DG) FOR OPEN CIRCUIT BETWEEN CJB AND WASHER ON/OFF RELAY Yes

GO to C5 .

No

REPAIR the circuit in question. REPEAT the self-test. CLEAR the DTCs.
NOTE: Verify voltage at CJB F26 (30A) before carrying out this test.
  • Disconnect: Washer ON/OFF Relay.
  • Measure the voltage between washer ON/OFF relay Pin 2, Circuit 65 (DG), harness side and ground; and washer ON/OFF relay Pin 3, Circuit 65 (DG), harness side and ground


  • Are the voltages greater than 10 volts?
C5 ISOLATE THE PROBLEM BETWEEN GEM AND BJB Yes

GO to C6 .

No

GO to C10
  • Connect a fused jumper wire (30A) between washer ON/OFF relay Pin 3, Circuit 65 (DG), harness side and Pin 5, Circuit 941 (BK/WH), harness side


  • Did the washer motor activate?
C6 CARRY OUT WASHER ON/OFF RELAY COMPONENT TEST Yes

GO to C7 .

No

INSTALL a new wiper ON/OFF relay.

REPEAT the self-test.

CLEAR the DTCs.
  • Check the washer ON/OFF relay; refer to Wiring Diagrams, Cell 149, Component Testing.
  • Is the washer ON/OFF relay OK?
C7 CHECK CIRCUIT 686 (TN/RD) FOR SHORT TO BATTERY BETWEEN GEM AND BJB Yes

REPAIR Circuit 686 (TN/RD). REPEAT the self-test. CLEAR the DTCs.

No

GO to C8
  • Disconnect: GEM C201d.
  • Measure the voltage between GEM C201d Pin 6, Circuit 686 (TN/RD), harness side and ground.


  • Is the voltage greater than 10 volts?
C8 CHECK CIRCUIT 686 (TN/RD) FOR SHORT TO GROUND BETWEEN GEM AND BJB Yes

GO to C9 .

No

REPAIR Circuit 686 (TN/RD). REPEAT the self-test. CLEAR the DTCs.
  • Measure the resistance between GEM C201d Pin 6, Circuit 686 (TN/RD), harness side and ground.


  • Is the resistance greater than 10,000 ohms?
C9 CHECK CIRCUIT 686 (TN/RD) FOR AN OPEN CIRCUIT BETWEEN GEM AND WASHER ON/OFF RELAY Yes

INSTALL a new GEM; REFER to Section . REPEAT the self-test. CLEAR the DTCs.

No

REPAIR Circuit 686 (TN/RD). REPEAT the self-test. CLEAR the DTCs.
  • Measure the resistance between GEM C201d Pin 6, Circuit 686 (TN/RD), harness side and washer ON/OFF relay Pin 1, Circuit 686 (TN/RD), harness side.


  • Is the resistance less than 5 ohms?
C10 CHECK CIRCUIT 941 (BK/WH) FOR SHORT TO BATTERY BETWEEN BJB AND WASHER MOTOR Yes

REPAIR Circuit 941 (BK/WH). REPEAT the self-test. CLEAR the DTCs.

No

GO to C11 .
  • Disconnect: Washer Pump Motor C137.
  • Measure the voltage between washer pump C137 Pin 1, Circuit 941 (BK/WH), harness side and ground


  • Is the voltage greater than 10 volts?
C11 CHECK CIRCUIT 941 (BK/WH)FOR OPEN BETWEEN THE BJB AND THE WASHER MOTOR Yes

GO to C12 .

No

REPAIR Circuit 941 (BK/WH). REPEAT the self-test. CLEAR the DTCs.
  • Measure the resistance between washer pump C137 Pin 1, Circuit 941 (BK/WH), harness side and washer pump relay Pin 5, Circuit 941 (BK/WH), harness side.


  • Is the resistance less than 5 ohms?
C12 CHECK CIRCUIT 1205 (BK) FOR AN OPEN Yes

INSTALL a new washer motor.

REPEAT the self-test.

CLEAR the DTCs.

No

REPAIR Circuit 1205 (BK). REPEAT the self-test. CLEAR the DTCs.
  • Measure the resistance between washer pump C137 Pin 2, Circuit 1205 (BK), harness side and ground.


  • Is the resistance less than 5 ohms?

Component Test

Windshield Wiper Motor

CAUTION: Do not handle the wiper motor abusively when diagnosing the wiper operations. Failure to follow this caution may result in damage to the motor magnets and will make the wiper motor inoperative. Rough handling of new replacement wiper motors may also damage the motor magnets.

Use Alternator, Regulator, Battery and Starter Tester (ARBST) to test the wiper motor on the vehicle.

To test the wiper motor, disconnect the windshield wiper mounting arm and


To test the wiper motor, disconnect the windshield wiper mounting arm and pivot shaft from the windshield wiper motor; refer to Pivot Arm .

Disconnect the wiper motor. Connect the (1) green lead from (2) (ARBST) to the battery negative (-) post. Connect the (3) red lead from ARBST to the wiper motor (4) common brush terminal (terminal 3).

Test the low speed mode by connecting a (5) cable from the battery positive (+) post to the (6) low speed brush terminal (terminal 4) and measure the current draw. If the current draw is greater than 3.5 amperes, install a new windshield wiper motor.

Test the high speed mode by connecting a cable from the battery positive (+) post to the (7) high speed brush terminal (terminal 5) and measure the current draw. If the current draw is greater than 5.5 amperes, install a new wiper motor.

    Wiper Blade and Pivot Arm Adjustment
    Wipers and Washers (Diagnosis and Testing) Refer to Wiring Diagrams Cell 59 , Generic Electronic Module for schematic and connector information. Refer to Wiring Diagrams Cell 81 , Interval W ...

    Motor - Windshield Wiper
    Wipers and Washers (Diagnosis and Testing) Refer to Wiring Diagrams Cell 59 , Generic Electronic Module for schematic and connector information. Refer to Wiring Diagrams Cell 81 , Interval W ...

    Other materials:

    Control Components (Description and Operation)
    Control Components (Description and Operation) Manual A/C The climate control system heats or cools the vehicle interior depending on the function selector position and the temperature selected. Function selector position determines heating or cooling and ai ...

    Running out of fuel
    Avoid running out of fuel because this situation may have an adverse effect on powertrain components. If you have run out of fuel: • You may need to cycle the ignition from off to on several times after refueling to allow the fuel system to pump the fuel ...

    Transmission (DISASSEMBLY)
    Transmission Description (Description and Operation) The 4R70W has the following features: Wide ratio gears Four speeds Rear wheel drive Automatic Electronic shift Torque converter clutch control Line pressure controls The transm ...
