Ford Mustang Service Manual: Rear Drive Axle/Differential - Ford 7.5-Inch Ring Gear

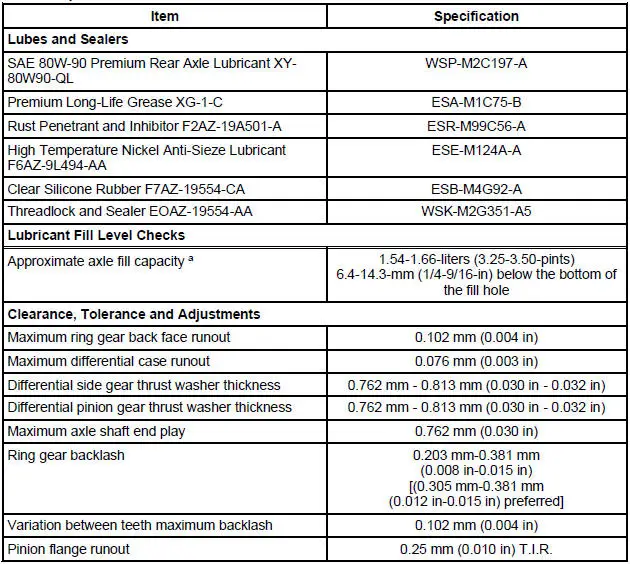

General Specifications
a: In-vehicle repair refill capacities are determined by filling the rear axle with the specified lubricant to 6.4-14.3-mm (1/4-9/16-in) below the bottom of the fill hole.

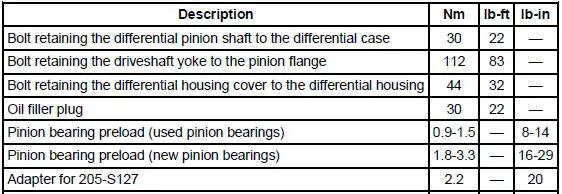

Torque Specifications
- Rear Drive Axle and Differential
- Axle Shaft
- Rear Wheel Bearing and Axle Shaft Oil Seal
- Drive Pinion Flange and Drive Pinion Seal
- Differential Housing Cover
- Axle Housing Bushing
- Drive Pinion
- Differential Case
- Axle Assembly
- Differential Case and Ring Gear
Assembly
Disassembly
1. Remove the driveshaft (4602). For additional information, refer to
Driveshaft in this section.
2. CAUTION: Under no circumstances is the driveshaft assembly to be
clamped in the
jaws ...
Rear Drive Axle and Differential
Rear Drive Axle and Differential
The axle housing assembly consists of a cast center section with two
steel tube assemblies and
a stamped differential housing cover (4033). The diffe ...
