Ford Mustang (1999-2004) Service Manual: Manual Transaxle/Transmission - T5OD

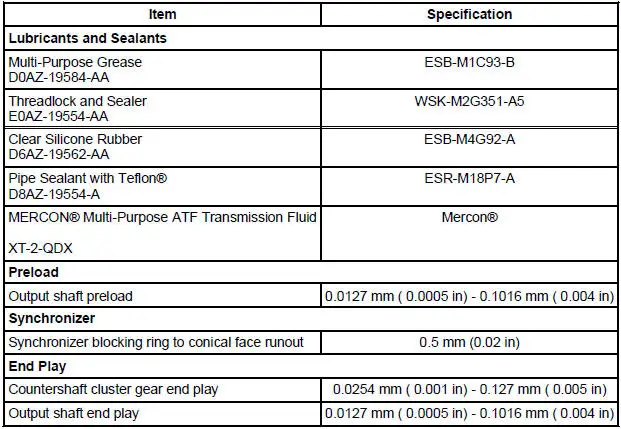

General Specifications

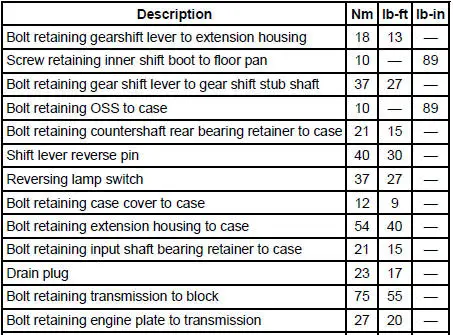

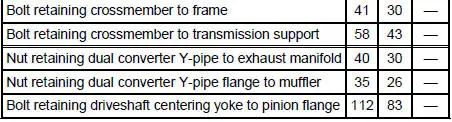

Torque Specifications
- Manual Transmission
- Gearshift Lever and Boot
- Transmission (Removal)
- Transmission (Disassembly)
- Selector Plate
- Input Shaft and Bearing
- Output Shaft
- Countershaft Bearing
- Synchronizers
- Transmission (Assembly)
Release Cable - Clutch
Removal
CAUTION: Whenever the clutch release lever cable (7K553) is
disconnected for any
reason, such as transmission removal, clutch pedal components or clutch
release lever cable
replacement, ...
Manual Transmission
The T5OD 5-speed transmission:
fifth speed gear functions as an overdrive gear.
forward gears are synchronized and helical cut.
shift interlock system prevents the engagement of more than one ...
Other materials:
Disassembly
1. CAUTION: Hand tighten the special tool to prevent gear damage.
CAUTION: Support the output shaft while using the press to prevent
damage to the
shaft or gears.
Using the special tool and a press, remove first gear, the output shaft rear
bearing ...
